Mechanical Dust Collector System
Related components including in the system
- Mechanical Bag Filter
- Mechanical Centrifugal Fan
- Mechanical Rotary Valve
- Mechanical Helicopter System
- Mechanical Lifter Dust/Wastage Unloading Cover
- Mechanical Jet Pulse System
- Mechanical Vibrator System
- Ducting System
- Maintenance Platform
Mechanical Dust Collector System design based on approved local authority requirements to allow continuous circulating airflow which enabling collection of sawdust or wastage disposal with air pollution control measure in more efficient manner.
| Product Name: | Mechanical Dust Collector System |
|---|---|
| Design Concept: | Positive Air Pressure |
| Purpose: | Control waste or dust discharged direct expose to atmosphere |
| Function: | Clean and collect waste or dust discharged in good manner |
| Specification: | (a) Air Design Capacity: | 24,190 m³/hr |
|---|---|---|
| (b) Filtration Area: | 1.78 m² | |
| (c) Air To Cloth Ratio: | 170 m/hr | |
| (d) Quantity Of Filter Cloth: | 80 pcs |

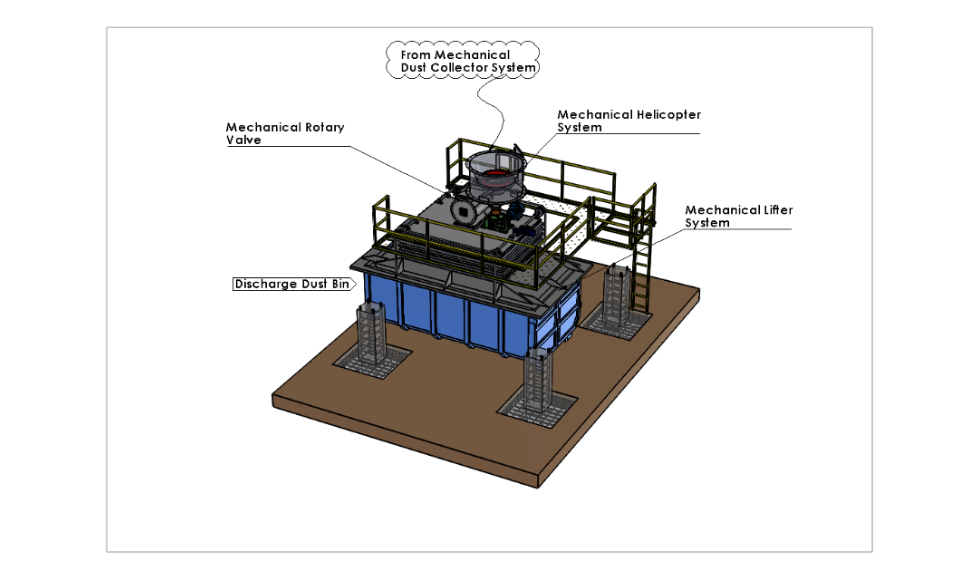

Discharging Part
Sweep rotation cleaning of the waste or dust by Helicopter System through Mechanical Rotary Valve and direct discharge to designated Garbage Tank
Recommendation
Suitable for all types of dry dust or wastage discharged (Except on liquid form or wastage contains moisture)
Efficiency Level
99.99%
